Motor Control Solutions for Humanoid Robots

March 14, 2025
With the right evaluation modules, reference designs and safety-qualified devices, engineers can accelerate time-to-market and achieve functional safety certification for smarter, faster and safer humanoid robots.

Members can download this article in PDF format.

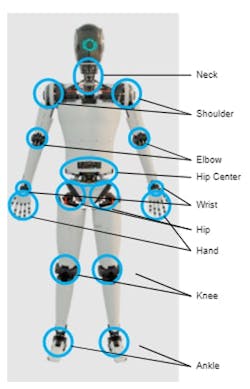

Designing robots requires precision and flexibility. When creating a humanoid robot system, there are mechanical and electrical considerations that you need to understand before beginning the actual design.

Sponsored Resources

The Robot Motor Drive Block Diagram building blocks to make it happen include:

Motor types. When high power levels are needed, humanoid robots can incorporate motors such as permanent magnet synchronous motor (PMSM, a brushless AC motor that uses permanent magnets in its rotor to create a magnetic field). There are two options for PMSM motors: trapezoidal or sinusoidal winding. This choice of winding (and the control algorithm) affect how precisely the motor is controlled.

Brushed DC motors can be used in some low power cases such as hand and finger control. Product miniaturization has an effect on motor selection for many applications and there is associated complexity of the motor control and position feedback to achieve precise motion.

Motor control algorithms. After selecting a motor type, engineers must determine the method for how to control the motor. The control system is the brain of a humanoid robot. It processes the data received by the sensor system and provides commands to the actuators to act based on this decision process. Sophisticated algorithms help to reduce switching needs and losses of the motors FETs. High-performance MOSFETs or GaN FETs are needed to implement the drive and therefore increase motor efficiency.

Newer technologies, such as the GaN FET, improve switching performance compared to MOSFET-based systems. Gallium nitride field-effect transistors can have integrated gate drivers that push power-stage efficiency beyond 99%, allowing integrated motors to reduce or eliminate the need for a heat sink.

TI has many different MCUs which fit algorithm and angle sensor requirements. Important factors are the size of the IC and the real-time capability to enable high performance drive system. C2000 real-time microcontrollers and ARM-based microcontrollers are used in motor control algorithms. Learn more about motor and motion functions of humanoid robots. Learn more about motor and motion functions of humanoid robots.

Power stage requirements. The physical size available is another design consideration. Space constraints require higher power density and power efficiency. Small-size ICs and highly optimized power density designs are crucial to achieve small-space design goals. On the other hand high-power density leads to potential temperature limitations of the robot. Temperature management methods should not include additional cooling such as fans or liquids.

Current sensing is also an important design consideration when assessing power stage requirements; select appropriate current sensing parts to achieve desired performance levels. TI’s reference designs help you create a compact, efficient and fully protected power stage module for humanoid robots. TI’s analog and embedded processing products enable improved motor control performance and exceed isolation and EMC requirements.

Communications. Designing advanced humanoid robots requires a communication system that can support high-bandwidth, real-time data transfer across numerous joint controls, all within a space-constrained framework that remains reliable in noisy industrial environments.

Due to the location of the drives in the robot, optimizing communication with all drives while minimizing the amount of cabling is important. Typically, two key design parameters are data rate and cable size or length. In humanoid robots, Single Pair Ethernet (SPE) is used in either point-to-point or daisy-chain configurations to connect motor controllers that coordinate movement across various subsystems. TI offers both the physical layer (PHY) transceivers and embedded processors designed to enable these communication protocols. Learn how Single Pair Ethernet PHYs address these challenges and simplify system architecture.

Vision and sensors. These parts of the robot have the ability to scan the surrounding environment and stop or reduce a robot’s speed when humans approach. Sound sensors allow humanoid robots to hear speech and environmental sounds. Vision sensing is implemented with laser detection and ranging (LIDAR), a radar-based safety area scanner or 3D cameras. TI’s integrated circuits and reference designs help you create humanoid robot sensor modules and interfacing for radar, LIDAR, ultrasonic proximity or cameras.

Functional safety considerations. When planning for future designs, selecting devices that simplify functional safety certifications is important. ISO13482, ISO10218 and ISO 3691-4 standards give clarity on what to expect for humanoid robots. However, ISO3691-4 leaves the architecture up to the implementer and the ISO10218 mandates CAT3 architecture. Category 3 refers to a design principle used by the engineering teams. It means that machines are designed to not only check for faults but also have redundant circuits for all safety functions.

In Summary

With a wide range of evaluation modules, reference designs and safety-qualified devices, TI simplifies the development process—helping accelerate time-to-market and achieve functional safety certifications. By leveraging advanced gallium-nitride (GaN) technology, MCUs and precision sensing devices in your robot designs, you can increase productivity and enhance safety, all while meeting your cost and performance requirements.
