Inverse-kinematics software designs modular robots

June 6, 2013

Flexible Robotic Environment (FRE) software plus modular components quickly tailors robots to applications.

New software optimizes kinematics and plans paths for custom robots handling multiple axes. Flexible Robotic Environment (FRE) software was written by Bicommerce LLC, Rapid City, S. D., and it also acts as a motion platform.

Machinedesign Com Sites Machinedesign com Files Uploads 2013 06 12365 Ee Biocommer 1

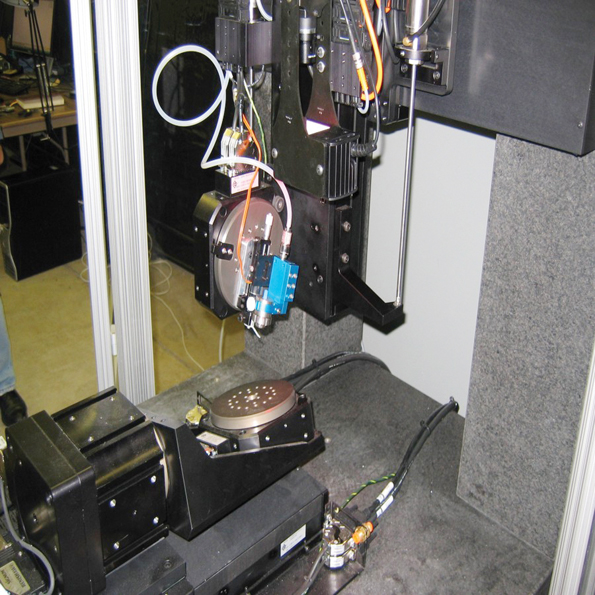

The FRE-based VDK 4000 is a modular direct-write six-DOF machine consisting of linear and rotary-motion components from Aerotech. Other Bicommerce machines including six-DOF material removers, four-DOF ultrasound inspectors, and six-DOF cold sprayers are configured from the same components as the VDK 4000.

To build a robot with FRE, the integrator selects compatible motors, drives, and mechanical parts. Direct and inverse-kinematics software calculates how motors on each axis must move to trace the robot’s end effector through preset points in space. Edits to the transformation matrix (relating the robot’s base coordinates to the moving coordinate frames) distribute the robot’s degrees of freedom to minimize position error. Then Application Programming Interface (API) software defines the motion profiles of the paths.

Developed for SolidWorks, the API is a graphical CAD-to-motion path planner called ModusCAM. Depending on the application, the API creates three kinds of paths: Stand-alone paths, typically to drive inspections; paths to clad surfaces of 3D solids (with laser deposition, for example); and paths to build solids slice by slice. The API can also plan paths for machining solids.

One machine built with the software is a six-degree-of-freedom (DOF) robot with motion components from Aerotech Inc., Pittsburgh. The VDK 4000 deposits metals, conductors, insulators, ferrites, polymers, adhesives, or biological substrate on silicon, glass, plastic, metal, ceramic, or polyimide parts. An end effector moves a 20-W YAG laser (with a spot size adjustable to 20 µm) around the workpiece to sinter on the deposit material.

Machinedesign Com Sites Machinedesign com Files Uploads 2013 06 12365 Ee Biocommer 2

API software automatically plans tool moves to build solid models. It picks a tool orientation (yellow) and a path (dark blue arrows) for the tool to follow.

The ModusCAM API (running on a custom HMI) maps workpiece geometry to a reference coordinate frame. After programming, the paths go to an Aerotech A2 controller with kinematics algorithms and I/O management routines for immediate execution. The A2 calculates setpoints for the control loops to synchronize the machine’s axes. Thermal models of the workpiece and deposition process adjust the control algorithm to optimize the material flow rate, laser power setting and melt pool, and end-effector speed. This improves the deposited layer’s microstructure to make a stronger part with fewer residual stresses.
