Using 3D Printing Techniques to Generate Electricity from Waste Heat

Aug. 26, 2021

A 3D printing method for PbTe thermoelectric materials is used to design high-performance power-generating TE tubes.

In breakthrough research, engineers affiliated with UNIST (located in Korea’s largest industrial city, Ulsan) have developed a thermoelectric technology to produce power-generating tubes using 3D printing techniques.

Thermoelectric (TE) technologies show promise in enhancing fossil energy efficiencies by generating electricity from waste heat from industrial or automobile exhaust gases. However, typical thermoelectric solutions manufactured in traditional processes do not fulfil efficiency and low-cost requirements. This is especially true for exhaust pipes, noted the researchers.

To address this inefficiency, a thermoelectric tube using a 3D printed ink made of lead (Pb) and tellurium (Te) was created. The researchers explained that metal particles were mixed inside a glycerol solvent to provide viscoelasticity, a status that exhibits both viscous and elastic characteristics.

Professor Han Gi Chae, Professor Jae Sung Son and their research team at UNIST.

The tube has a high thermoelectric performance at temperatures between 400 and 800°C. This is also the temperature range of a car’s exhaust gases.

The research was jointly led by Professor Han Gi Chae and Professor Jae Sung Son from the Department of Materials Science and Engineering, along with Professor Sung Youb Kim from the Department of Mechanical Engineering, at UNIST.

Their experimental and computational findings demonstrated that the performance of the power-generating TE tube fabricated from 3D-printed PbTe tubes were an effective strategy to design system-adaptive, high-performance thermoelectric generators.

3D printing of power-generating TE tube. a) Scheme showing the power-generating TE tube made of the 3D-printed p-type and n-type PbTe tubes at the front view. b) Photograph showing the components for the module assembly. c) Photograph of the fabricated power-generating TE tube chipping unipair of p-type and n-type PbTe legs, and schematic model of a power-generating tube chipping 10 pairs of TE legs assembled from the fabricated unit module.

“Through this research, we will be able to effectively convert heat generated by factory chimneys, the most common type of waste heat source, into electricity,” said Son. He added that the tube shape makes it more effective in collecting heat than a conventional rectangular parallelepiped shape.

Chae reported that the use of 3D printing technology in the production of thermoelectric materials can overcome limits of conventional materials. “The new technology for providing viscoelastic characteristics to 3D printed materials will be used in various other sectors,” he said.

Their work has been featured on the front cover of Advanced Energy Materials.

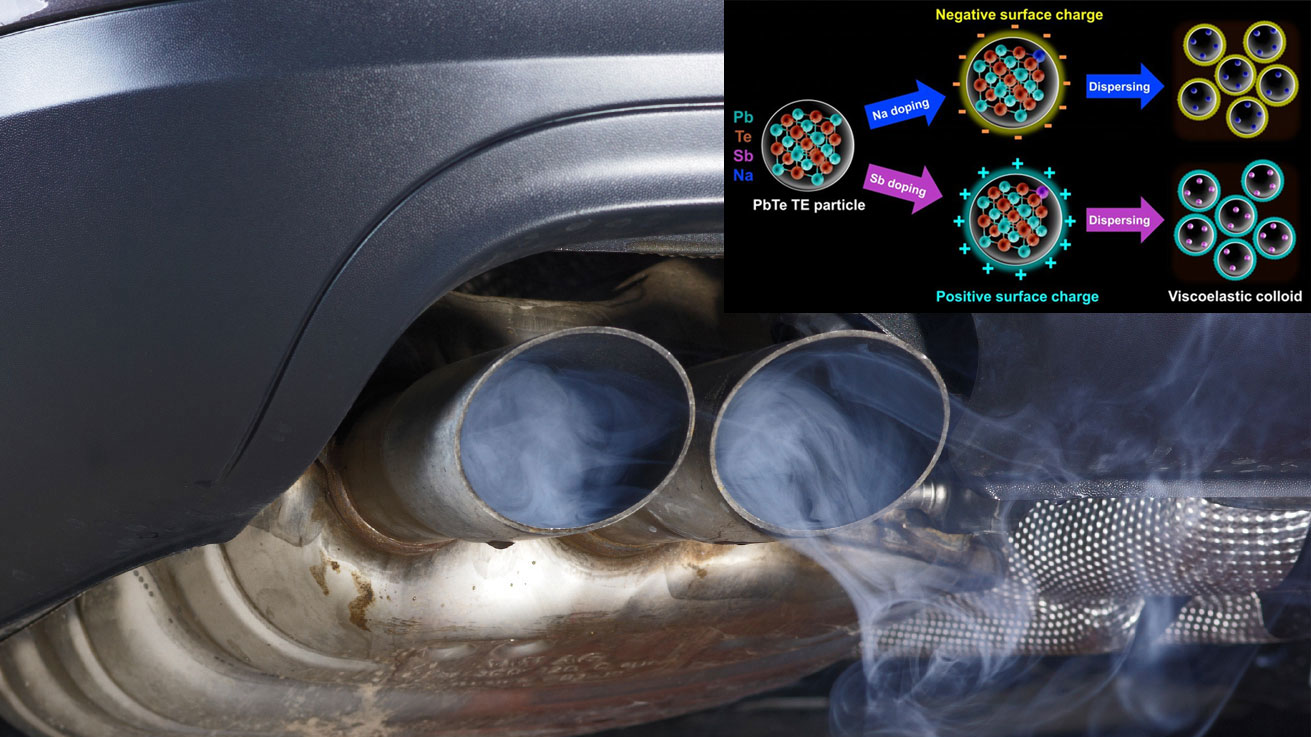

Schematic illustration showing the doping-induced surface charges of Na- and Sb-doped PbTe particles generating viscoelastic colloids.

Reference:

Jungsoo Lee, Seungjun Choo, Hyejin Ju, et al., “Doping-Induced Viscoelasticity in PbTe Thermoelectric Inks for 3D Printing of Power-Generating Tubes,” Adv. Energy Mater., (2021).
