Some photoelectric sensors, ultrasonic sensors, and rotary encoders generate a digital dc output called a push-pull signal. The external environment activates the sensor, which, in turn, closes a circuit on either a positive supply voltage or a negative ground voltage to trigger an output. Push-pull sourcing and sinking, as it’s called, happens in two transistors:

  • Sinking happens in npns, sometimes called open collectors. Npns are bipolar transistors with two negatively (n) doped semiconductor layers that donate electrons to the circuit and sandwich a positively (p) doped base. When on, npns make a positive potential between the base and upstream n layer (called the collector). The base amplifies current through the downstream n layer (called the emitter) for sensor-triggered output.
  • Sourcing happens in pnps, sometimes called line drivers. Pnps are bipolar transistors in which p-doped semiconductor material sandwiches an n-doped base. When on, the pnp makes a negative potential between the base and upstream emitter. A downstream collector amplifies current from the base for sensor-triggered output.

The ability to sink or source is useful because installers can network push-pull sensors to machines without knowing in advance which signals the controls use when a machine has a PLC and it’s unclear what operation function it accepts, for example.

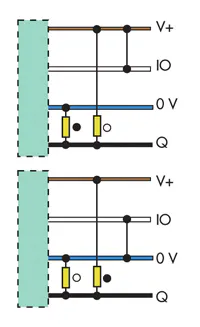

Push-pull outputs are simple to wire, protect against short circuits and reversed polarity, and resist electromagnetic interference. For example, encoders with push-pull outputs handle long cable runs and supply better square waves (of motion or position information to a controller) because they’re constantly driven. In other words, such encoders supply a path to ground when off and positive voltage when on. In contrast, an open collector alone generates floating (nonreferenced) voltage when on, and a line driver alone does the same when off, making them both intermittently vulnerable to noise.

Some push-pull-based sensors generate four different outputs, thanks to “4-in-1” circuitry. A user adjusts the sensor’s potentiometer to the mode that suits the application. Circuits in the sensor detect which output the controls need. Such sensors connect loads in light-on or dark-on for one wire, and V+ or V– for the other. That way, users only have to stock one sensor for a given application (instead of four models to cover the same outputs).

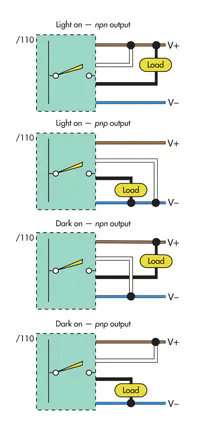

For example, 4-in-1 photoelectric sensors can operate light-on or dark-on plus automatically detect output load and sink or source output accordingly, to operate in pnp-light-on, pnp-dark-on, npn-light-on, or npn-dark-on. In light-on mode they trigger output when a target is present (low to high), and in dark-on mode they trigger output when no target is present — and drop out once objects are detected (high to low).

One caveat: Push-pull outputs don’t let users connect multiple sensors together, because if one sensor pushes and the other pulls, the transistor can be damaged. So users must wire these sensors individually.
